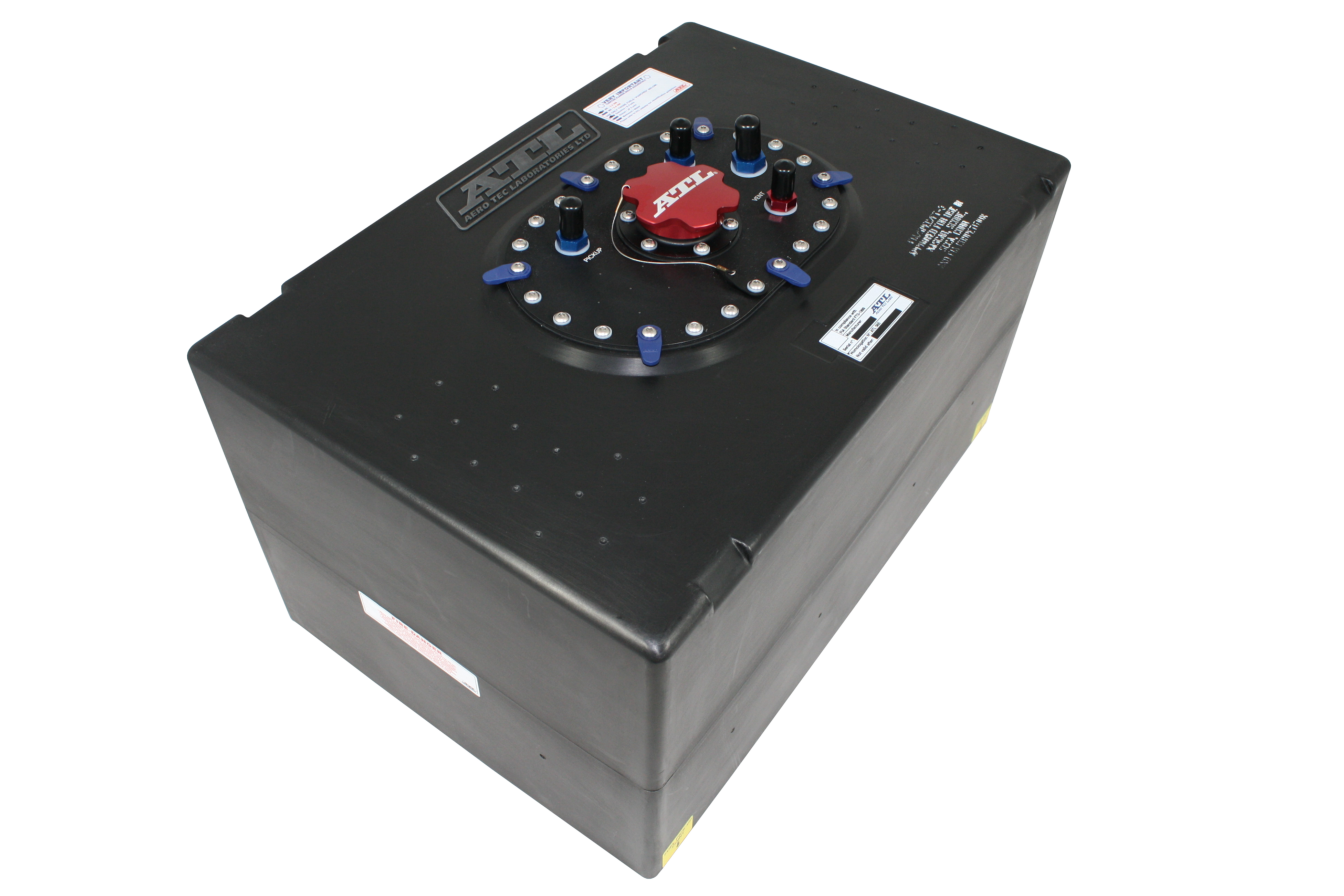

ATL SA 122B 22 GAL. Saver Series Fuel Cell RWA 7305-22

ATL SA 122B 22 GAL. Saver Series Fuel Cell RWA 7305-22

$1,033.00

Molded, Seamless Hard Rubber Bladder:

  • Excellent Resistance to Race Gas, Ethanol & Methanol
  • FIA FT3 Certified
  • Composite Nut-Ring
  • SF-103 Foam Baffling for Slosh & Explosion Suppression (For 100% Alcohol, use SF110 Foam)
TF195 Steel Fill Plate :

  • (1) Low Profile Twist-Cap & Neck with Flap Valve
  • (1) #6 or #8 Outlet
  • (1) #6 Vent-Check Roll-Over Valve

Capacities and Dimensions:
Nominal Capacity: 8 Gallon (30 Liters)
Nominal Bladder Dimensions: 19.87″ x 12.00″ x 8.75″
Nominal Weight: 14 lbs.
#6 std pick-up size

5 Year Limited Warranty!
Ideal for: Road Race, Rally, Circle Track, Dirt Track, Hotrod, Drag and Offroad Applications!
Also Very Popular with the Armed Forces for Defense Vehicles, SatCom Trailers,
Launchers, Generators & Assault Boat

SKU: RWA7305-22 Category:

Description

Part Number: RWA7305-22
Capacities and Dimensions:
Nominal Capacity: 22 Gallon (85 Liters)
Nominal Bladder Dimensions: 24.43″ x 16.31″ x 13.25″
Nominal Weight: 22 lbs.
#8 std pick-up size

Additional information

Weight 30 lbs
Dimensions 30 × 20 × 16 in
